Introduction

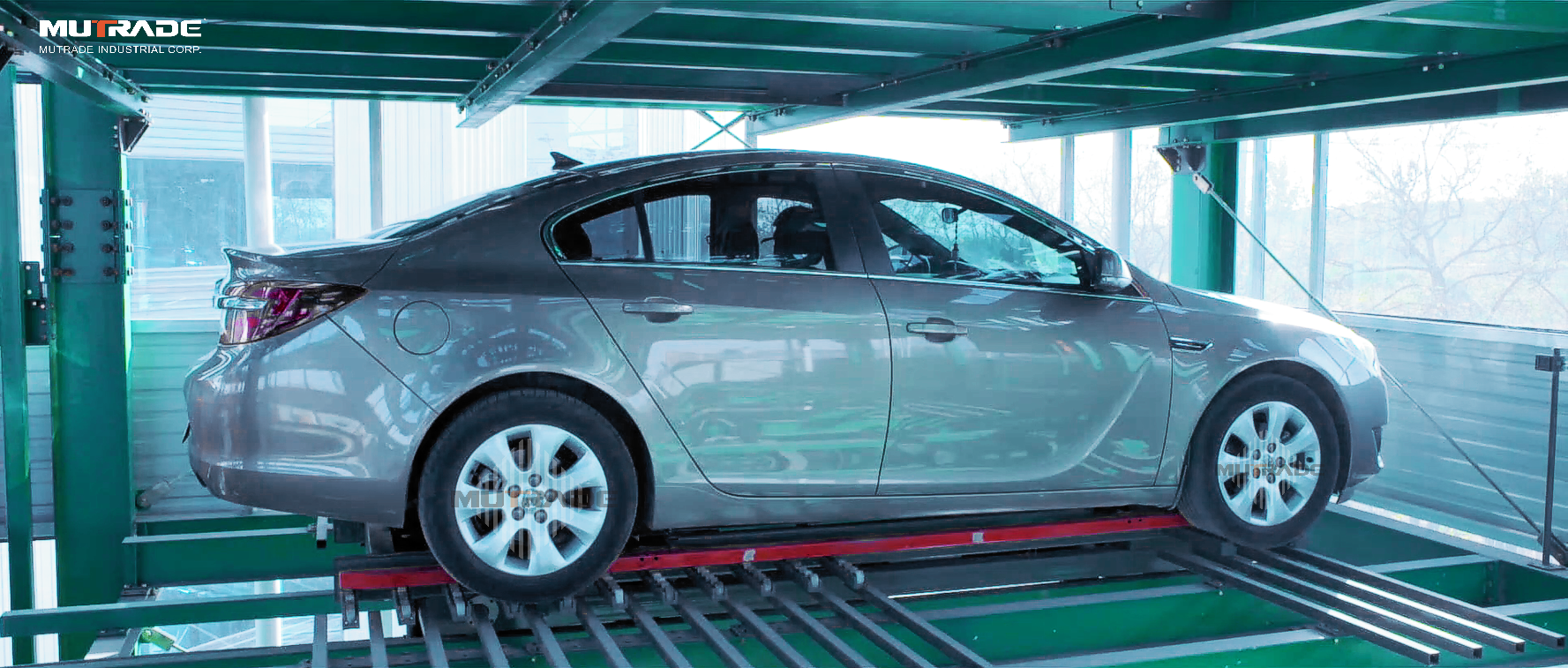

The revolutionary Automated Cabinet Parking System is the result of Mutrade continued commitment to developing and providing innovative parking and storage solutions. This system is a highly automated intelligent parking system, which is an electrically powered, mechanized multi-level metal structure designed to accommodate and store vehicles on multiple levels using the principle of lifting, transverse movement and sliding the car to a parking space on individual metal pallets.
- Commercial grade design
- Capacity of 2.3 tons capacity for sedan and SUV
- 15 levels above ground for both sedan or SUV
- Hydraulic pulley driven by large drive ratio. The hydraulic system is equipped with a pumping station with a group of pumps
- Each pump can become a backup for other pumps
- Electric car charging devices are available optionally.
- Low noise, high performance and safety
- High automation degree, instant treatment, continuous storage, high parking efficiency, can realize simultaneous access to vehicles
- Space saving, flexible design, diverse modeling, less investment, low spending and maintenance cost, convenient control operation etc.
- Various settings are optional: ground, semi- underground, fully underground
- The use of several pumps ensures low noise level, high energy efficiency, and reliability

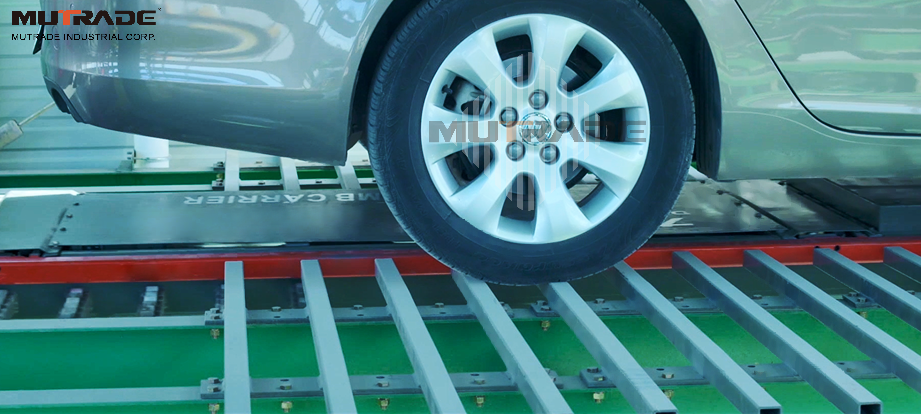

- Use of teeth or a comb to move the conveyor
- Eco-friendness. No vehicle emissions, clean and green
- Efficient use of available space. More cars are accommodated on the same area.
- There are observation entrance mirrors, language instructions, access LED display, etc.
- Vehicle theft and vandalism are no longer an issue and driver security is assured
- The final parking operation is fully automated reducing the need for staff
Specifications
| Drive mode |
Hydraulic & wire rope |
| Car size（L×W×H） |
≤5.3m×1.9m×1.55m |
| ≤5.3m×1.9m×2.05m |
| Car weight |
≤2350kg |
| Motor power & speedOperation mode |
Lift |
30kw Max 45m/min |
| Slide |
2.2kw Max 30m/min |
| Turn |
2.2kw 3.0rpm |
| Carry |
1.5kw 40m/min |
| Access mode |
IC card/ key board/ manual |
| Power supply |
Forward in, forward out |
| Car weight |
3 phase 5 wires 380V 50Hz |
Scope of application
Outdoor multi-level parking system or indoor concrete type
This type of parking equipment is suitable for medium and large buildings, parking complexes, and guarantees high vehicle speed. Depending on where the system will stand, it can be of low or medium height, built-in or free-standing. Automated Cabinet Parking System is designed for medium to large buildings or for special buildings for car parks.
Suitable for residential buildings, office buildings, hotels, hospitals, and any other commercial areas where vehicles enter & exit frequently.
